​SA3846
CURRENT MODE PWM CONTROLLER

The SA3846 adopts fixed-frequency current mode control, which improves the system’s line voltage regulation and load response characteristics, as well as simplifies the design of control loop. The SA3846 has built-in precision bandgap adjustable reference power supply, high-frequency oscillator, error amplifier, differential current detection amplifier, undervoltage lockout circuit, and soft startup circuit. It provides

functions such as automatic symmetry correction for push-pull converter, parallel operation, external shutdown, double pulse suppression, dead time adjustment, etc.


Main feature
  • Automatic feed forward compensation
  • Programmable controllable pulse-by-pulse current limit
  • Automatic symmetry correction for push-pull converter
  • Good load response characteristics
  • Parallel operation supported, applicable to module system
  • Built-in differential current detection amplifier, wide common mode input range
  • Double pulse suppression
  • High current totem pole output, output peak current of 500mA
  • Precision bandgap reference power supply, with accuracy of ±1%
  • Built-in undervoltage lockout circuit
  • Built-in soft startup circuit
  • External shutdown
  • Operating frequency: up to 500kHz


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

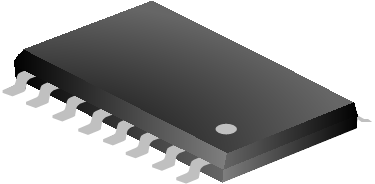

SA3846DC DIP-16-300-2.54 SA3846DC Halogen free Tube
SA3846SE SOP-16-375-1.27 SA3846SE Halogen free Tube
SA3846SETR SOP-16-375-1.27 SA3846SE Halogen free Tape&Reel
Block Diagram
