The SA2703 is high-voltage, high-current darlington driver IC composed of 7 NPN darlington pairs. All units share the emitter in common, and each unit adopts open-collector output. A 2.7KΩ resistor is connected to each darlington pair in serial, which is compatible with TTL and 5V CMOS for data processing without logic buffer.
Product Name | Package form | Marking | Hazardous Substance Control | Packing Type | Remarks |
---|---|---|---|---|---|

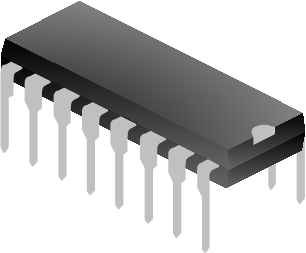

SA2703DC | DIP-16-300-2.54 | SA2703DC | Halogen free | Tube | |
SA2703SC | SOP-16-225-1.27 | SA2703SC | Halogen free | Tube | |
SA2703SCTR | SOP-16-225-1.27 | SA2703SC | Halogen free | Tape&reel |
