SA276 mainly designed for electronic commutation of brush-less DC fan. This IC internally includes the Hall Plate, Regulator, Pre-Amplifier, Comparator, and a pair of complementary open-collector Outputs (DO, DOB).SA276 internally includes power-reverse protecting diode, the protecting diode only protects chips but not for coils. If necessary, add one external diode to block the reverse current from coils.
Product Name | Package form | Marking | Hazardous Substance Control | Packing Type | Remarks |
---|---|---|---|---|---|

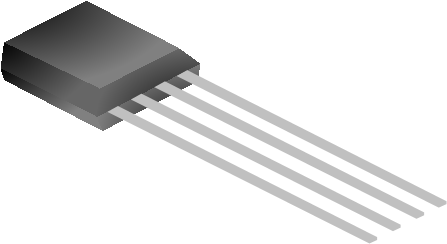

SA276 | TO-94 | 276 | Pb free | Bulk |
