The SLP74LVC2G14 is a dual inverting buffer with Schmitt-trigger input. The Schmitt-trigger makes the input tolerant of slower pulse edge. The device is designed for 1.65V to 5.5V Vcc operation and performs the function Y=A.
The device is specially designed for protect performance during power down using Power-Down-Protect circuit. The Power-Down-Protect circuitry disables the output drivers, preventing the damaging outside current back through the device when it is powered down.
Specified from -40°C to +85°C and from -40°C to +125°C
Product Name | Package form | Marking | Hazardous Substance Control | Packing Type | Remarks |
---|---|---|---|---|---|

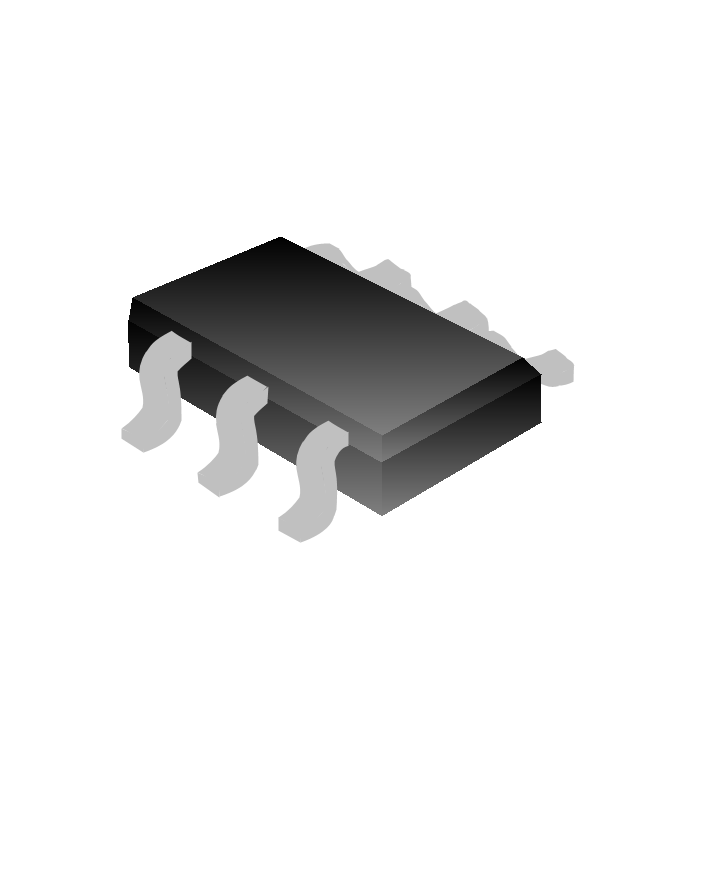

SLP74LVC2G14KETR | SOT-363-6L | SE | Halogen free | Tape & Reel | |
SLP74LVC2G14KCTR | SOT-23-6L | 2G14 | Halogen free | Tape & Reel |
Fig.1 Function diagram
Fig.2 Logic diagram
