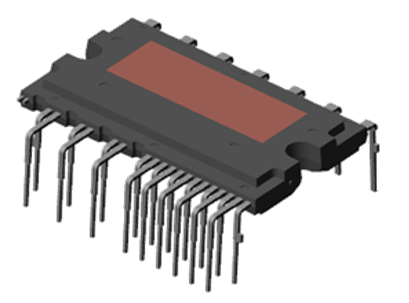

SDM15L60RA
600V/15A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)
SDM15L60RA is a 3-phase brushless DC motor driver with high integration and high reliability for low power inverter driving such as air conditioner, refrigerator and dishwasher. It has embedded six low-loss IGBTs and 3-phase full-bridge gate drivers with high voltage. The under voltage, short circuit and over temperature protections integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase. SDM15L60RA uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.
Ordering Information
Product Name |
Package form |
Marking |
Hazardous Substance Control |
Packing Type |
Remarks |
SDM15L60RA |
SDIP-26A |
SDM15L60RA |
Halogen Free |
Tube |
|
