SAP432
PRECISION ADJUSTABLE SHUNT REGULATOR
SAP432 is an adjustable three-terminal shunt regulator with excellent thermal stability over operating temperature range. The output voltage can be set to any value between Vref (approximately 2.5V) and 36V through external resistors. It provides a very sensitive turn-on characteristic, which makes it possible to replace Zener diodes in many applications.
Ordering Information
Product Name |
Package form |
Marking |
Hazardous Substance Control |
Packing Type |
Remarks |
SAP432AKATR |

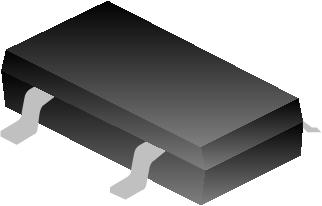

SOT-23-3L |
432A |
Halogen free |
Tape&Reel |
|
SAP432AKFTR |

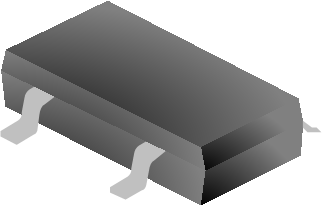

SOT-23 |
432A |
Halogen free |
Tape & Reel |
|
