SA317
THREE-TERMINAL ADJUSTABLE OUTPUT POSITIVE VOLTAGE REGULATOR
SA317 is an adjustable three-terminal positive voltage regulator, providing a maximum current exceeding 1.5A when the output voltage range is 1.25V to 37V. This voltage regulator is exceptionally easy to use, and only two external resistors are needed to set the output voltage. In addition, internal current limiting, thermal shutdown and safe working area compensation are used to basically prevent the fuse from blowing.
Main feature
- Output adjustable voltage low to 1.25V
- Maximum output current: 1.5A (TO-220-3L, TO-263-3L)
- Maximum output current: 0.5A (SOT-223-3L)
- Internal short circuit protection
- Over current/over thermal protection
- Transistor safe working area protection
- Standard three-terminal transistor package
Ordering Information
Product Name |
Package form |
Marking |
Hazardous Substance Control |
Packing Type |
Remarks |
SA317T |
TO-220-3L |
SA317T |
Halogen free |
Tube |
|
SA317S |

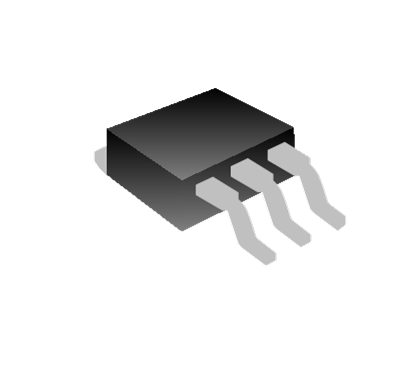

TO-263-3L |
SA317S |
Halogen free |
Tube |
|
SA317STR |
TO-263-3L |
SA317S |
Halogen free |
Tape & Reel |
|
SA317H |
SOT-223-3L |
SA317H |
Halogen free |
Tube |
|
SA317HTR |
SOT-223-3L |
SA317H |
Halogen free |
Tape & Reel |
|
