The SLP74LVT245B is a high performance bus transceiver. The device is designed for 2.7V to 3.6V VCC operation, but with the capability to provide TTL interface to a 5V system.

The device have eight independent line drivers with 3-state outputs. When the input of OE. is high, the associated output is in the high-impedance state. The device transmits data from A to B or from B to A is dependent on the direction control pin (DIR).


Main feature
Octal bidirectional bus bufferOutput capability: +64mA and -32mATTL input and output switching levelsInput and output interface capability to 5V systemsBus hold data inputs without the need of external pull-up resistorsNo bus current loading when output is tied to 5 V busLive insertion and extraction permittedPower-up 3-stateESD protection:
  • 2000-V Human-Body Model
Latch up performance:100mASpecified from -40°C to +85°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

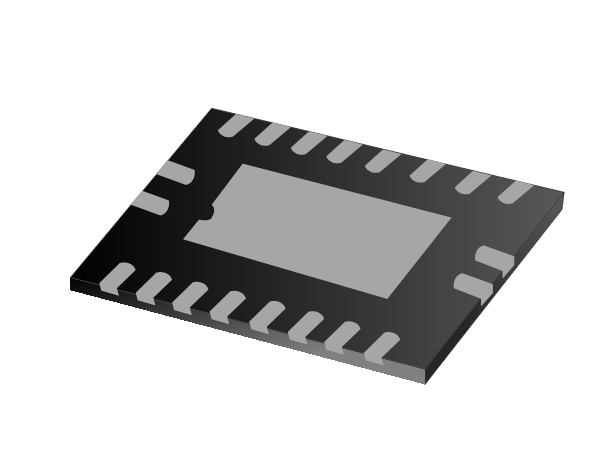

SLP74LVT245BNHTR QFN-20-4.5x2.5x0.85-0.5 LVT245B Halogen free Tape & Reel
Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SLP74LVT245B 0 1970-01-01 SLP74LVT245B Brief Datasheet
