The SLP74LVT16244B is a 16-bit high performance bus buffer and line driver. The device is designed for 2.7V to 3.6V VCC operation, but with the capability to provide TTL interface to a 5V system.

The device has four groups of 4-bit independent line drivers with 3-state outputs. When the input of nOE is high, the associated 4-bit output is in the high-impedance state.


Main feature
  • 16-bit bus buffer
  • Output capability: +64mA and -32mA
  • TTL input and output switching levels
  • Bus hold data inputs without the need of external pull-up resistors
  • Input and output interface capability to systems at 5V supply
  • Live insertion and extraction permitted
  • No bus current loading when output is tied to 5V bus
  • Power-up 3-state
  • ESD protection:
  • 2000-V Human-Body Model
  • 1000-V Charged-Device Model
  • Specified from -40°C to +85°C
  • Latch up performance:100mA


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

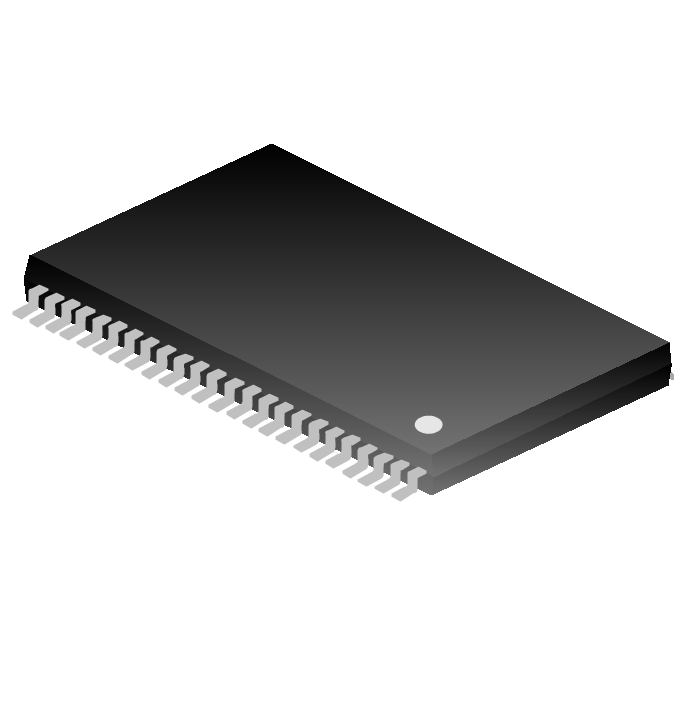

SLP74LVT16244BJZ TSSOP-48-300-0.5 LVT16244B Halogen free Tube
SLP74LVT16244BJZTR TSSOP-48-300-0.5 LVT16244B Halogen free Tape & Reel
Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SLP74LVT16244B 0 1970-01-01 SLP74LVT16244B Brief Datasheet
