SDM03LF60DA2
600V/3A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)
SDM03LF60DA2 is a 3-phase brushless DC motor driver with high integration and high reliability for low power inverter driving applications such as fan motor, consisting of built-in 6 fast recovery MOSFET and 3-phase full-bridge gate drivers with high voltage. The under voltage, short circuit and over temperature protections integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase. SDM03LF60DA2 uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.
Main feature
- Built-in low-loss 600V/3A fast recovery MOSFET
- Built-in high-voltage integrated circuit of gate driver
- Built-in under voltage protection, over temperature protection, over current protection and temperature output
- Built-in bootstrap diode with current limiting resistor
- Compatible with 3.3V, 5V MCU interface, active high
- Three independent negative DC terminal for inverter current detection
- Alarm signal: for low-side under voltage, over temperature and short circuit protections
- Insulation level: 2000Vrms/min
Ordering Information
Product Name |
Package form |
Marking |
Hazardous Substance Control |
Packing Type |
Remarks |
SDM03LF60DA2 |

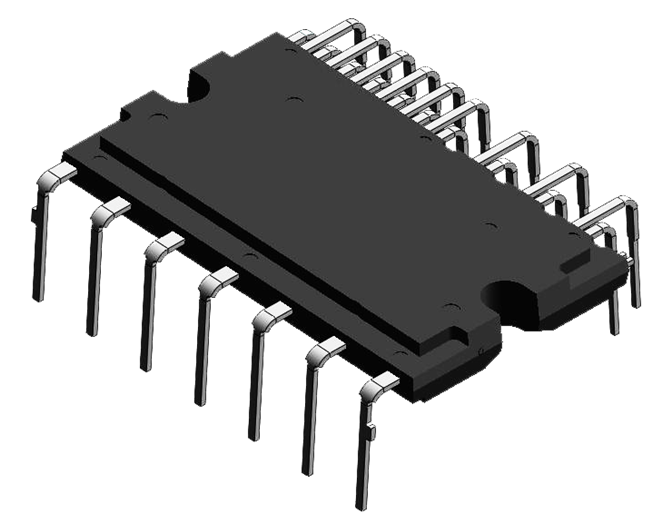

SDIP-26D |
SDM03LF60DA2 |
Halogen Free |
Tube |
|
