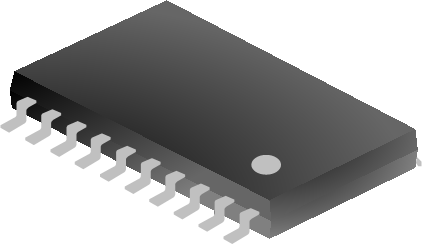

SLP74AHC574
OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS
    The SLP74AHC574 is an octal edge-triggered D-type flip-flop with 3-state outputs.    The 8 flip-flops will store the state of their individual D-inputs that meet the set-up and hold times requirements on the LOW-to-HIGH CP transition. This device is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.


Main feature
  • Balanced propagation delays
  • CMOS input levels
  • ESD protection:
  • HBM: 2000V
  • CDM: 1000V
  • Latch-up performance: 100mA
  • Specified from -40°C to +85°C and from -40°C to +125°C


Block Diagram

SLP74AHC574  中英文同(4500&1725).png

Documents
title Types of Size (KB) date Download the latest English version
SLP74AHC574 0 1970-01-01 SLP74AHC574 Brief Datasheet
